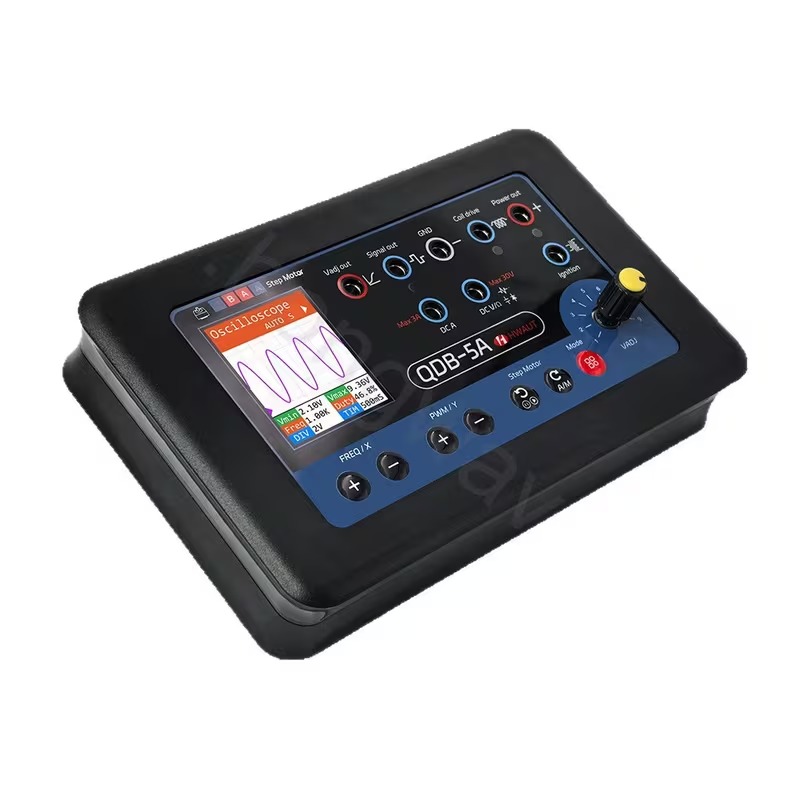

Automotive Actuator Drive Tester with Oscilloscope and Multimeter

This automotive actuator drive tester is designed for electrical testing, signal checking, and component drive diagnostics in compatible vehicle systems. It supports multiple functions, including oscilloscope testing, multimeter measurement, stepper motor drive, PWM signal output, ignition coil drive, and adjustable voltage output. The front control panel provides dedicated ports and controls for organized connection during workshop inspection and repair tasks. It is suitable for automotive technicians working with sensors, actuators, ignition components, throttle-related parts, motors, and other compatible electronic control components.

Technical Details:

• Product type: Automotive actuator and drive tester
• Main functions: Oscilloscope, multimeter, PWM signal output, stepper motor drive, ignition coil drive, and adjustable voltage output
• Drive support: 3A / 4A actuator drive applications
• Display: Built-in color screen for signal and measurement viewing
• Controls: Frequency, PWM, step motor, mode, and voltage adjustment controls
• Connection ports: Signal output, ground, coil drive, power output, DC input, and ignition test ports
• Suitable for: Automotive electrical diagnostics, actuator testing, stepper motor testing, ignition coil inspection, PWM signal simulation, and workshop repair tasks
• Use note: Intended for trained users working with compatible vehicle electrical systems and proper testing procedures.
